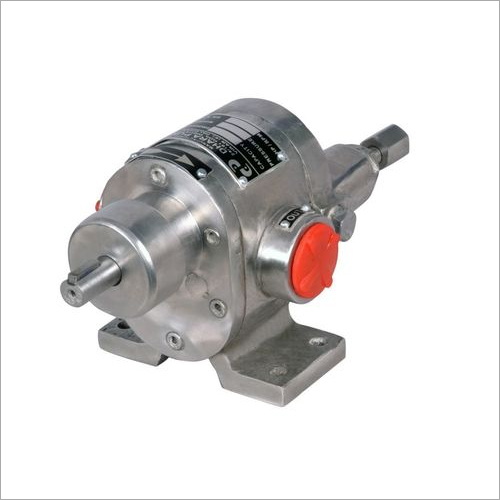

Stainless Steel Gear Pump
Product Details:
- Usage Transfer, Loading-Unloading, Circulating
- Product Type External Gear Pump
- Max Suction 6 to 7m negative
- Inlet/Outlet 1/8
- Head Size 100m to 120m
- Color Steel Finish / Metalic Blue
- Theory Rotary Pump
Stainless Steel Gear Pump Price And Quantity
- 6000 INR/Piece
- 1 Unit
- 500000.00 - 150000.00 INR/Piece
Stainless Steel Gear Pump Product Specifications
- Other
- Electric
- Threaded / Flanged
- 5 lpm to 3500 lpm
- Rotary Pump
- 1
- Steel Finish / Metalic Blue
- Not Required
- Medium Pressure
- External Gear Pump
- 6 to 7m negative
- Gear Pump
- Transfer, Loading-Unloading, Circulating
- PTFE Gland, Mechanical seal
- 1/8
- 100m to 120m
- SS 304, SS 316, SS 316L
Stainless Steel Gear Pump Trade Information
- Ex-works Palghar 401305
- Cash in Advance (CID) Cheque
- 25 Unit Per Month
- 1 Week
- Wooden Crate, Carton, Wooden Box
- Australia Africa Middle East Asia
- All India
- MSME Registered
Product Description
We are instrumental in manufacturing, supplying and exporting the Stainless Steel Gear Pump for our valued end customers. This pump is manufactured using high-grade stainless steel material by a deft team of professionals. Owing to its 5lpm to 2100lpm capacity, our provided pump is designed for transferring the high viscosity liquid. In addition, this Stainless Steel Gear Pump finds application in food processing, pharmaceutical and agriculture industries.
Features:
- Non-metallic rotor eliminates galling problems
- It is known for its quiet operation
- universal built-in shaft seal flexibility
Other Details:
- Pump available from size 1/8" to 6".
- Pumps available in SS304, SS316
- Capacity: 5 lpm to 2100 lpm
- Sealing : Gland Packing/ Mechanical Seal
- Pump Provided with inbuild relief valve
- Useful for low to high viscocity liquid transfer
- High Temperature: can be used for pumping hot liquid upto 1800 C
- Highly Recommended for viscous corrosive liquids pumping applications
- Suitable for food and pharma industries
Technical Specifications :
STANDARD SPECIFICATION FOR "DHARA PUMPS" ROTARY EXTERNAL GEAR PUMPS
| No | Pump Model | MAXIMUM CAPACITY IN LPM AT 0 PSI | NOZEL SIZE | RPM | PRESURE Vs. H.P. TABLE (PRESURE IN PSI) | ||||
| SUCTION | DELIVERY | 50 | 100 | 250 | 500 |
|
|
|
|
| 1 | DP 05 | 5 | 1/8" | 1/8" | 1440 | 0.3 | 0.5 | 0.5 | 0.75 |
| 2 | DP 10 | 10 | 3/8" | 3/8" | 1440 | 0.3 | 0.75 | 0.75 | 1.5 |
| 3 | DP 15 | 20 | 1/2" | 1/2" | 1440 | 0.5 | 1.0 | 1.5 | 2.0 |
| 4 | DP 20 | 25 | 3/4" | 3/4" | 1440 | 1.0 | 1.5 | 2.0 | 3.0 |
| 5 | DP 30 | 35 | 1" | 1" | 1440 | 1.5 | 2.0 | 3.0 | 5.0 |
| 6 | DP 40 | 45 | 1" | 1" | 1440 | 1.5 | 2.0 | 3.0 | 5.0 |
| 7 | DP 50 | 60 | 1" | 1" | 1440 | 1.5 | 2.0 | 3.0 | 5.0 |
| 8 | DP 100 | 120 | 1 | 1 | 1440 | 2.0 | 3.0 | 5.0 | 10.0 |
| 9 | DP 200 | 235 | 2" | 2" | 1440 | 3.0 | 5.0 | 12.5 | 25.0 |
| 10 | DP 350 | 375 | 2 | 2 | 1440 | 5.0 | 10.0 | 25.0 |
|
| 11 | DP 500 | 550 | 3" | 3" | 1440 | 7.5 | 15.0 | 30.0 |
|
| 12 | DP 700 | 750 | 3" | 3" | 1440 | 12.5 | 20.0 | 50.0 |
|
| 13 | DP 1000 | 1100 | 4" | 4" | 960 | 15.5 | 30.0 |
|
|
| 14 | DP 1500 | 1600 | 4" | 4" | 960 | 25.3 | 60.0 |
|
|
| 15 | DP 2000 | 2100 | 6" | 6" | 960 | 30.5 | 75.0 |
|
|
Price:
- 50
- 100
- 200
- 250
- 500
- 1000+
