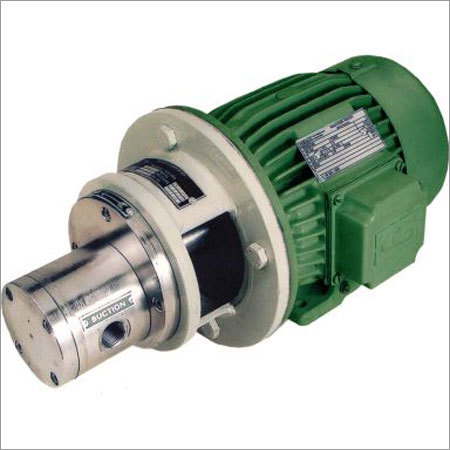

Flanged Type Gear Pump In Cast Iron Construction
Product Details:
- Usage Transfer,Circulation,Unloading
- Product Type External Gear Pump
- Flow Rate 60 LPM (max)
- Color Metalic Green
- Size 1/2
- Theory Rotary Pump
- Head Size 0-25 m
Flanged Type Gear Pump In Cast Iron Construction Price And Quantity
- 10000 INR/Piece
- 3000.00 - 15000.00 INR/Piece
- 1 Unit
Flanged Type Gear Pump In Cast Iron Construction Product Specifications
- Electric
- 14 kg to 30 kg Kilograms (kg)
- Medium Pressure
- 12 NB to 12 NB
- Threaded
- 0-25 m
- Rotary Pump
- Gear Pump
- 1/2
- Metalic Green
- 60 LPM (max)
- External Gear Pump
- C I, Cast Steel, SS304, SS316, Monel
- PTFE Gland, Mechanical seal
- Transfer,Circulation,Unloading
Flanged Type Gear Pump In Cast Iron Construction Trade Information
- Cash in Advance (CID) Cheque
- 25 Unit Per Week
- 1 Week
- Wooden Packing
- All India
Product Description
Flanged Type Gear Pump In Cast Iron Construction
The Flanged Type Gear Pump In Cast Iron Construction is offered by us that is made for use in the various industries. It is made up of two cast iron flanges that are attached to the ends of each shaft. To complete the drive, the two flanges are bolted together with bolts. A flange coupling connects two tubes in a sealed manner. Gear pumps are used mainly on high-viscosity products where the sample has some lubricating properties. They can generate high pressures for low flow rates. The Flanged Type Gear Pump In Cast Iron Construction is made for use in various industries.
Dhara Pumps offers high quality External Rotary Gear Pumps for high flow & pressure applications. These pumps are commonly used for loading & unloading of viscous liquid, transfer & filteration application.
Other Details:
- Pump available from size 1/2" to 1".
- Pumps available in C I, Cast Steel, SS304, SS316, Monel
- Capacity: 5 lpm to 60 lpm
- Sealing : Gland Packing/ Mechanical Seal
- Pump Provided with in build relief valve
- Useful for low to high viscocity liquid transfer
- High Temperature: can be used for pumping hot liquid upto 1800 C
STANDARD SPECIFICATION FOR "DHARA PUMPS" FLANGED MOUNTED GEAR PUMPS
Technical Specifications :
| No | Pump Model | MAXIMUM CAPACITY IN LPM AT 0 PSI | NOZEL SIZE | RPM | PRESSURE Vs. H.P. TABLE (PRESSURE IN PSI) | ||||
| SUCTION | DELIVERY | 50 | 100 | 250 | 500 |
|
|
|
|
| 1 | DP 15 | 20 | 1/2" | 1/2" | 1440 | 0.5 | 1.0 | 1.5 | 2 |
| 2 | DP 20 | 25 | 3/4" | 3/4" | 1440 | 1 | 1.5 | 2 | 3 |
| 3 | DP 30 | 35 | 1" | 1" | 1440 | 1.5 | 2 | 3 | 5 |
| 4 | DP 40 | 45 | 1" | 1" | 1440 | 1.5 | 2 | 3 | 5 |
| 5 | DP 50 | 60 | 1" | 1" | 1440 | 1.5 | 2 | 3 | 5 |
Price:
- 50
- 100
- 200
- 250
- 500
- 1000+
