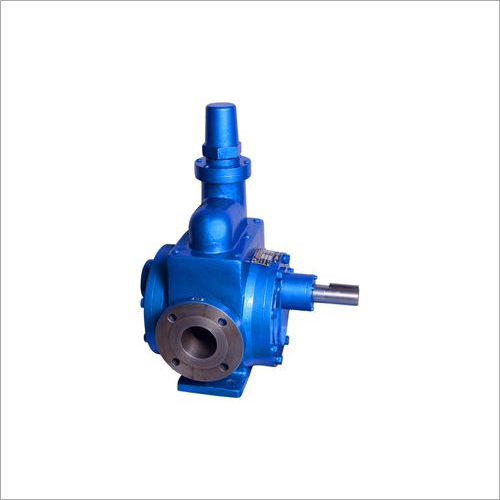

External Gear Pump 3 Inch
Product Details:
- Flow Rate 120 LPM
- Color Metalic Blue
- Product Type External Gear Pump
- Theory Rotary Pump
- Inlet/Outlet 1 1/2" BSP to 6" BSP
- Usage Transfer, Circulation, Loading-Unloading
- Material C I, Cast Steel, SS304, SS316, Monel
External Gear Pump 3 Inch Price And Quantity
- 28000.00 INR/Piece
- 1 Unit
External Gear Pump 3 Inch Product Specifications
- Rotary Pump
- 1 1/2" BSP to 6" BSP
- Transfer, Circulation, Loading-Unloading
- Electric
- C I, Cast Steel, SS304, SS316, Monel
- Gear Pump
- 120 LPM
- Gland Packing / Mechanical Seal
- Maritime
- Metalic Blue
- External Gear Pump
External Gear Pump 3 Inch Trade Information
- 25 Unit Per Month
- 1 Week
- Wooden Box
- All India
Product Description
Dhara Pumps offers high quality External Rotary Gear Pumps for high flow & pressure applications. These pumps are commonly used for loading & unloading of viscous liquid, transfer & filteration application.
Other Details:
- Pump available from size 11/2" to 6".
- Pumps available in C I, Cast Steel, SS304, SS316, Monel
- Capacity: 120 lpm to 2300 lpm
- Sealing : Gland Packing/ Mechanical Seal
- Pump Provided with inbuild relief valve
- Useful for low to high viscocity liquid transfer
- High Temperature: can be used for pumping hot liquid upto 1800 C.
Technical Specification:
|
No |
Pump Model |
MAXIMUM CAPACITY IN LPM AT 0 PSI |
NOZEL SIZE |
RPM |
PRESSURE Vs. H.P. TABLE (PRESSURE IN PSI) |
||||
|
SUCTION |
DELIVERY |
50 |
100 |
250 |
500 |
||||
|
1 |
DP 100 |
120 |
1 1/2" |
1 1/2" |
1440 |
2.0 |
3.0 |
5.0 |
10.0 |
|
2 |
DP 200 |
235 |
2" |
2" |
1440 |
3.0 |
5.0 |
12.5 |
25.0 |
|
3 |
DP 350 |
375 |
2 1/2" |
2 1/2" |
1440 |
5.0 |
10.0 |
25.0 |
|
|
4 |
DP 500 |
550 |
3" |
3" |
1440 |
7.5 |
15.0 |
30.0 |
|
|
5 |
DP 700 |
750 |
3" |
3" |
1440 |
12.5 |
20.0 |
50.0 |
|
|
6 |
DP 1000 |
1100 |
4" |
4" |
960 |
15.5 |
30.0 |
|
|
|
7 |
DP 1500 |
1600 |
4" |
4" |
960 |
25.3 |
60.0 |
|
|
|
8 |
DP 2000 |
2100 |
6" |
6" |
960 |
30.5 |
75.0 |
|
|
